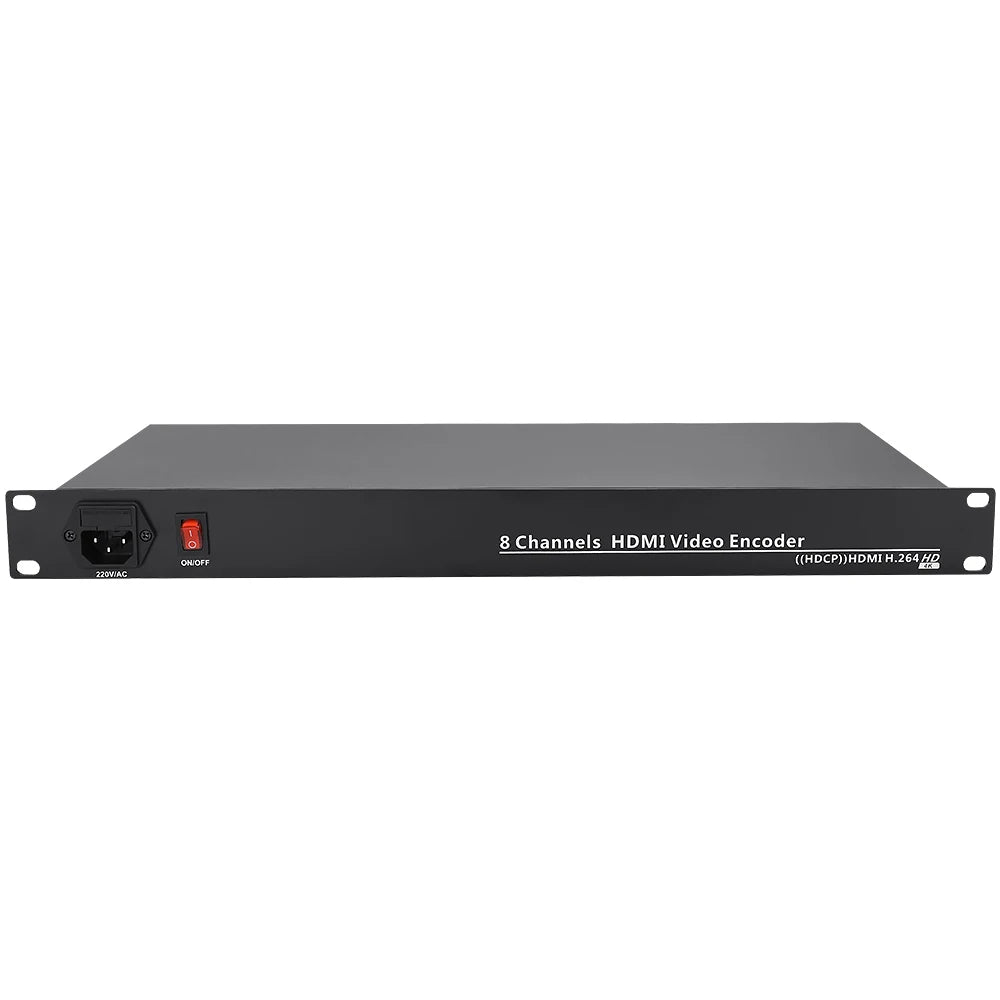

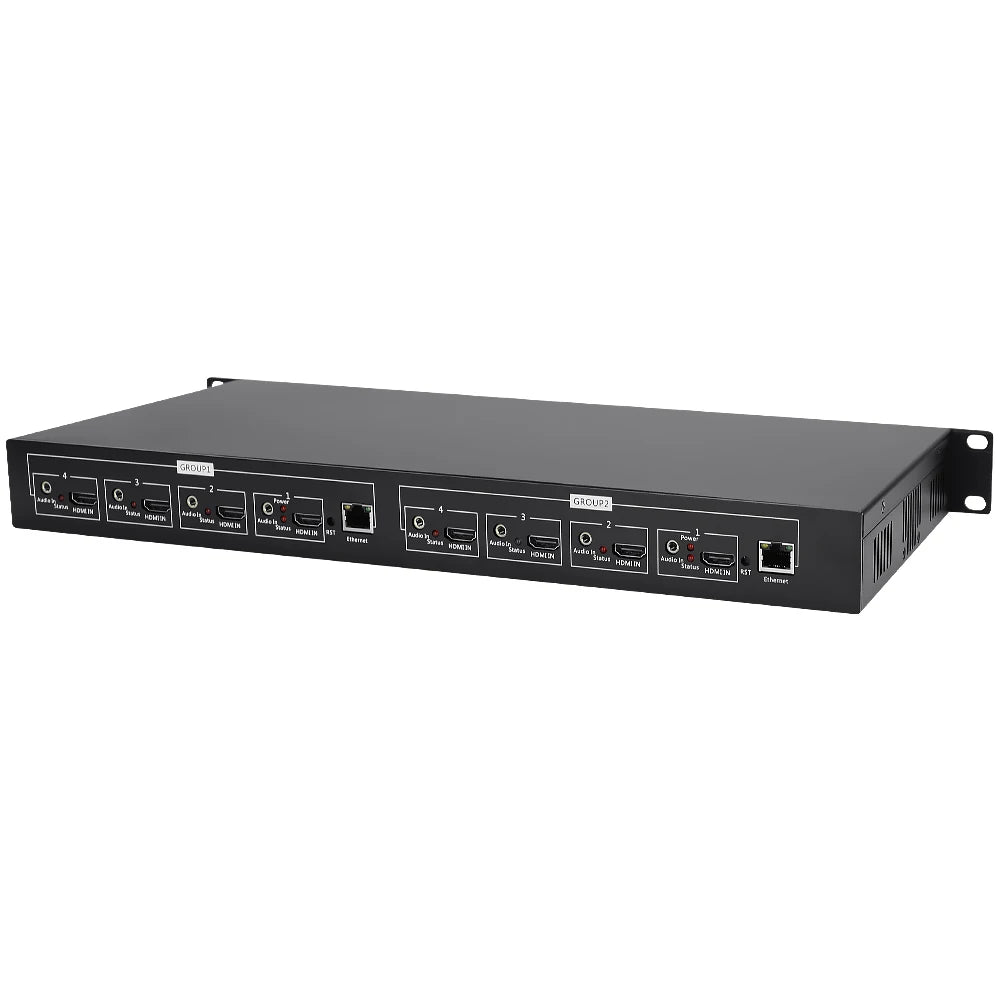

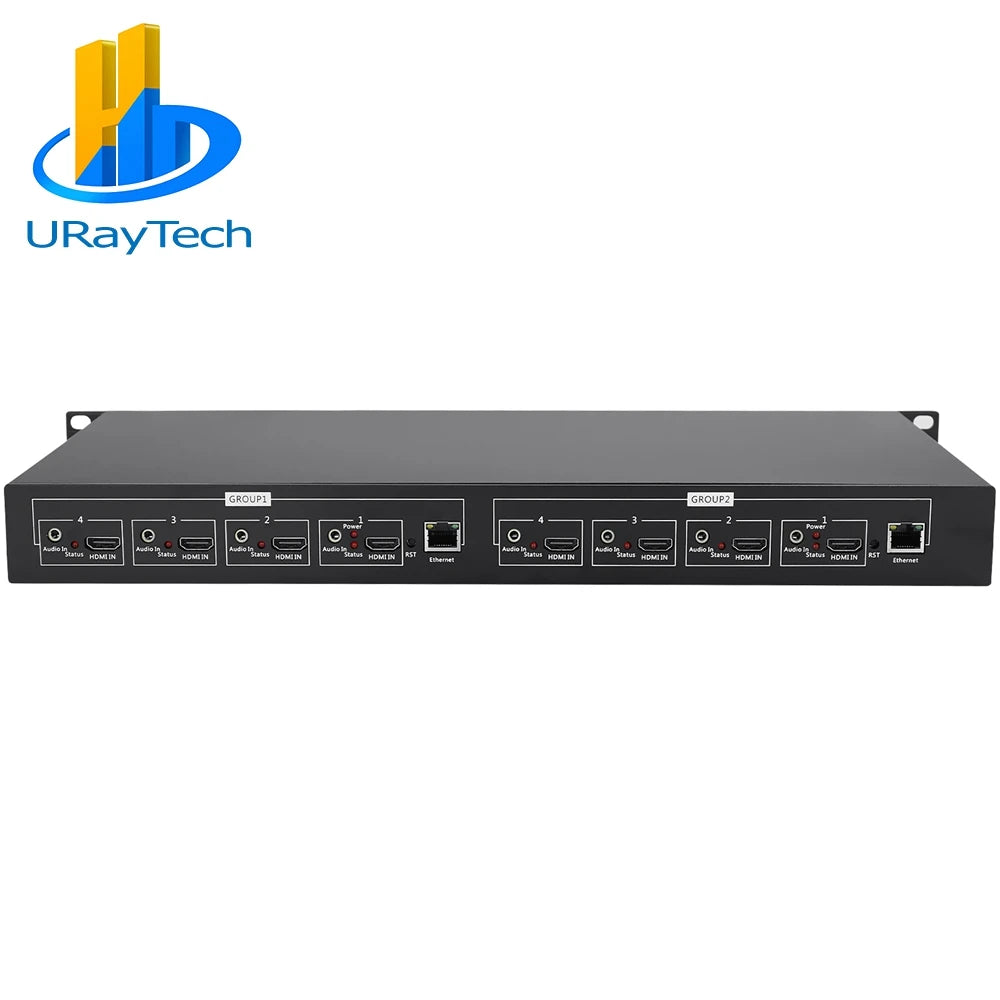

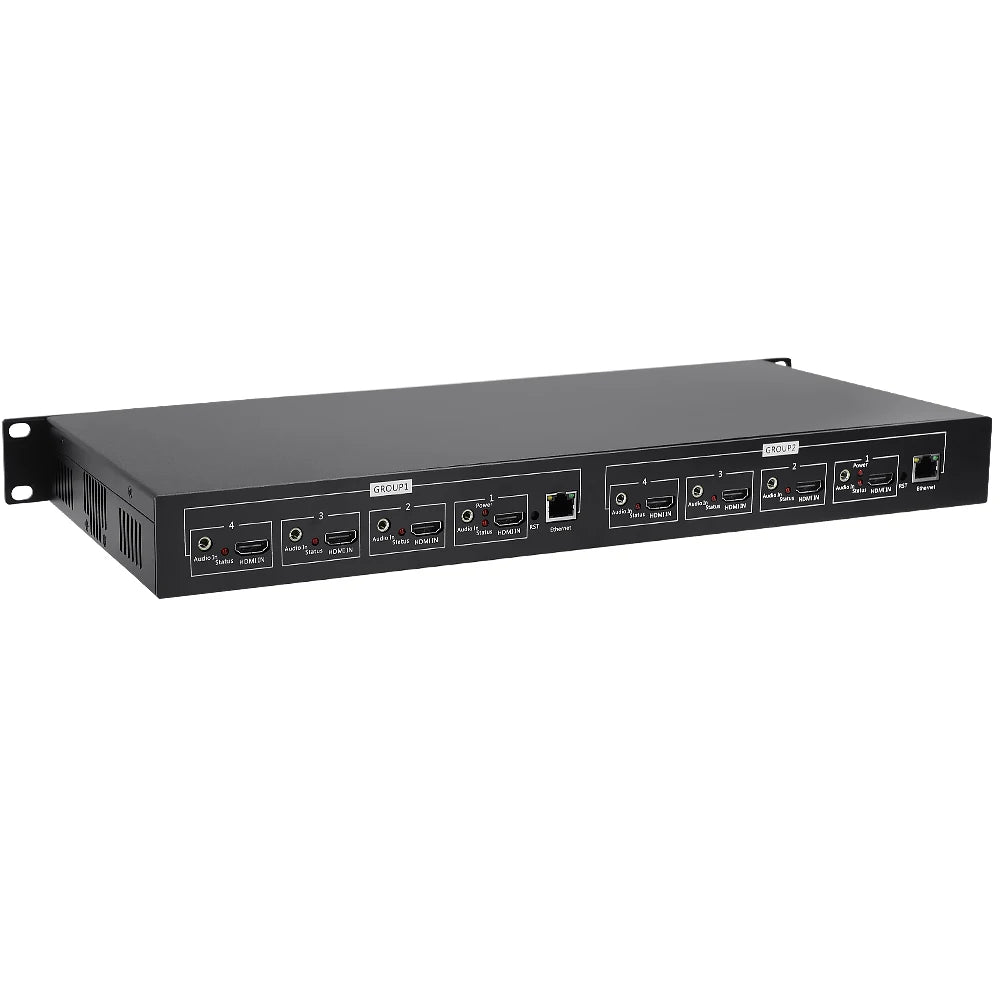

URay 8 channels MPEG-4 H.264 AVC HD HDMI Video Stream Encoder HDMI to IP live streaming encoder srt rtmp



Overview

URaytech video encoder(Model No. UHE264-8S-4K) is a UHD audio and video encoding device with powerful functionality. It supports 4*HDMI(audio build-in) and 4*external stereo audio(3.5mm) input, H.264 video encoding and AAC /G.711 audio encoding, 2 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. It supports up to 4K video resolution encoding. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

This encoder enable you to choose HDMI embedded audio or external stereo audio as output audio.

We produce multi-channel video encoder which is packed by 1U rack or 3U rack. For 3U rack, up to 16 encoder cards to be installed. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.



Typical Connection

1). For Live Broadcast Online Connection



2). For Multi-purpose Connection



3). For IPTV Project Connection





The Feature



•   Embedded HiLinux system, stable and effective

•   Friendly webpage configuration UI(IP address can be setted)

•   Support 8 channels max 4K30 HDMI input

•   Support H.264 AVC video encoding

•   Support AAC, G.711 audio encoding

•   The bitrate of output video stream is adjustable from 16kbit/s to 25mbit/s(CBR or VBR bitrate controlling mode)

•   Support SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text on the output video stream

•   Support output displayed video resolution and frame rate setting(max 3840x2160P@30fps)

•   Support different protocol transmission for the 2 output video streams

•   Firmware is upgradeable

•   Support choose HDMI embedded audio or external audio as output audio for each channel

•   Provide SDK and API also CGI for secondary development

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management(via port forwarding)

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

----------------------------------------------------

•   Multi platforms live broadcast

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports 2 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.



Product Specification

Model No.	UHE264-8S-4K
Video

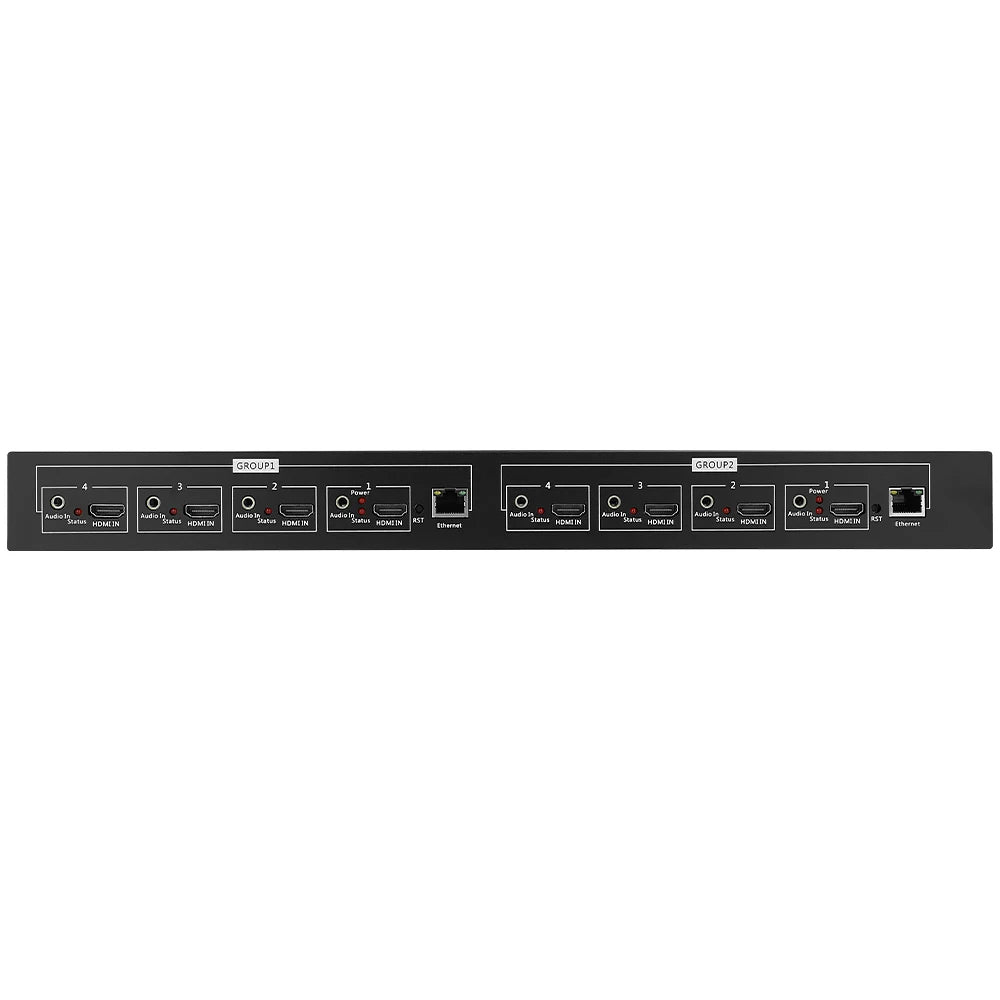

Input	8*HDMI 1.4(Support HDCP1.4)
Input Resolution	Max 3840x2160P@30fps, Max 60fps frame rate for 1080P and below
Encoding Type	H.264 AVC
Encoding Levels	H.264 high /main /baseline profile
Video Bitrate	Adjustable From 16kbit /s to 25mbit /s
Bitrate Control	CBR or VBR
Output Resolution	Adjustable, max 3840x2160P /30fps(Max 60fps for 1080P and below)
Video Pre-processing	De-interlacing, noise reducing and sharpening
Audio
Input	HDMI embedded audio or external stereo audio(3.5mm)
Audio Encoding	AAC, G.711
Sampling Rate	44.1KHz, 48KHz
Bitrate Control	Adjustable from 48000~256000
Sampling Accuracy	24bit
ONVIF	G.711
Network
Interface	1000M Ethernet port(RJ45)
Streaming Protocol	SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control Panel	Webpage UI(language customizable)
Firmware Update	Enable by uploading files to dashboard and upgrade
General
Dimension (W* L* H)	490*300*45/mm(Size)
Net Weight	2.93kg
Temperature	0 to 45(For working), -20 to 80(For storing)
Input Voltage	DC 12V /1A
Power Consumption	<8w/channels





System Status



Network Settings



Media Settings



OSD Settings



System Settings
