Dimensional Video Networks
Super September Digicast Live Streaming Server Facebook Ustream Xtream IP Video Encoder IPTV
Super September Digicast Live Streaming Server Facebook Ustream Xtream IP Video Encoder IPTV
Regular price
$976.89 USD
Regular price
$0.00 USD
Sale price
$976.89 USD
Unit price
per
Couldn't load pickup availability
Top Selling
GoMix Free Server for IPTV
For Hotel School and Enjoyment
Multi-Media IPTV Transcoder
4/8/32 CH Multi-Channel Encoder
Professional Receiver Decoder
Digital TV Modulator
Products Description
Order Guide DMB-8804A Classic ProVideo Streaming Encoder(HDMI in) DMB-8904A Classic ProVideo Streaming Encoder(HDMI in) DMB-8800A Plus ProVideo Streaming Encoder(HDMI in/loopout) DMB-8800A Enhanced ProVideo Streaming Encoder(HDMI/VGA/AV/YPbPr in) DMB-8800A Premium ProVideo Streaming Encoder(HDMI+CVBS)

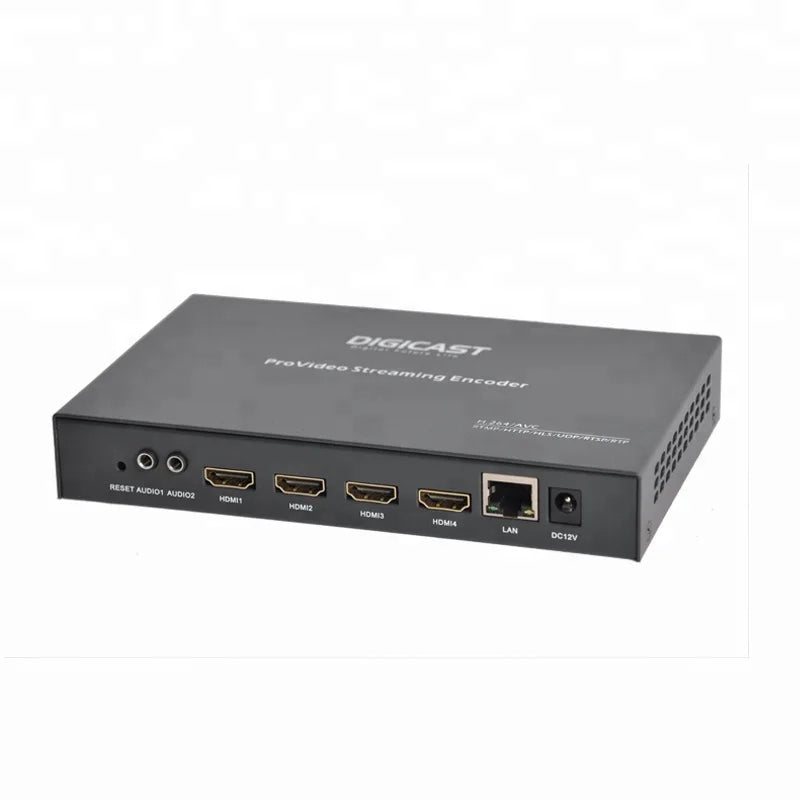

DMB-8804A Classic ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8804A Classic accepts 4*HDMI and 4*3.5mm input and each channel of HDMI input outputs 4 channels TS over IP in H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streamings. DMB-8804A Classic provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
Title goes here.
Support 1*RJ45 for IP stream output, 1*RJ45 for management. Switchable audio output mode: Left, Right and Stereo Display on multi-screens from a computer is available Up to full HD 1080P@60fps encoding. Workable under HLS, RTMP, RTSP/HTTP/UDP unicast and multicast (Username and password verification allowed under RTMP) Support HDCP protocol Support ONVIF Network Video Protocol Multi-protocol, multi-resolution and multi-bitrate are configurable Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime, Anywhere by HLS protocol without installing any software players. Any terminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC). Audio encoded bit-rate: 48K /64K /96K /128K/160K/192K /256K
Bit-rate mode CBR/VBR,16Kbps~12Mbps Video packing: FFMPEG/ VLC Transport method: TCP,UDP,1000M (RJ45 duplex interface) Web-based management easy for configuration. Scrollable English OSD ,picture overlay and logos are available while letters and symbols can be displayed anywhere in the screen Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance Image setting: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability Able to encode with absence of video signal The setting comes into effect once finished while reboot is unnecessary Default configuration can be done by one key recovery WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported

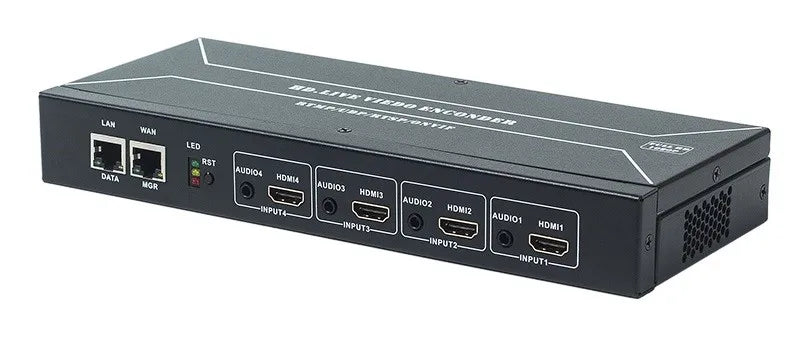

Detailed Image
Application
* IPTV & OTT system
* Internet TV
* Digital Signage Project
* Remote Video Conference
* Video Monitoring
* Live Streaming
* Digital TV Broadcasting System
* Digital TV Programs Transmission
* Hotel TV System
* Head-end system of Digital TV branch network
* CATV Broadcasting system
*Edge side of Digital TV backbone network
|
Specification
|
||||||
|
Video Encoding
|
Video compression: H.264/AVC High Profile Level 4.0
Video inputs: HDMI(HDCP supported)
Frame rate: up to 60fps/CH
Analog video input mode: PAL, NTSC
Input resolution:
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480,
720x404,704x576,640x480,640x360,auto
Output resolution:
Main stream(supporting two protocols):
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480,
720x404,704x576,640x480,640x360,auto
Sub-stream(supporting two protocols):
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,
640x300,352X288,320X240,320X180 auto
Bit-rate: 16kbps~12Mbps, CBR/VBR
OSD: text, photo
Video pre-processing: Noise reduction, Sharpen, Filtering
|
|||||
|
Audio Encoding
|
Input interface: 4*HDMI, 4*3.5mm line in(audio gain supported)
Audio compression: AAC, MP3
Sampling rate: Adaptive, selectable of re-sample
Re-sample: 32KHz,44.1KHz
Audio bit-rate: 48Kbps,64 Kbps,96 Kbps,128 Kbps,160Kbps,192 Kbps,256 Kbps,384Kbps
|
|||||
|
IP Streaming output
|
For each HDMI in to IP output: 4*TS over IP stream out(HLS, RTMP, RTSP, HTTP, UDP, multicast/unicast, ONVIF, protocol).with 4 different
resolutions (up to 1080p) and 4 different bitrates to meet different size screen and different bandwidth condition.
Connector: RJ45,1000M
|
|||||
|
Physical And Power
|
System
Configuration Interface: Web-based
Remote upgrade via network
Connector: RJ45, 1000M Ethernet interface.
Physical and Power
Voltage: 12V DC
Power Consumption: 5W
Operating temperature: -20~60℃
Dimensions: 100mm(W)*250mm(D)*35mm(H)
Weight: 0.8 KG ((including accessories)
|
|||||
