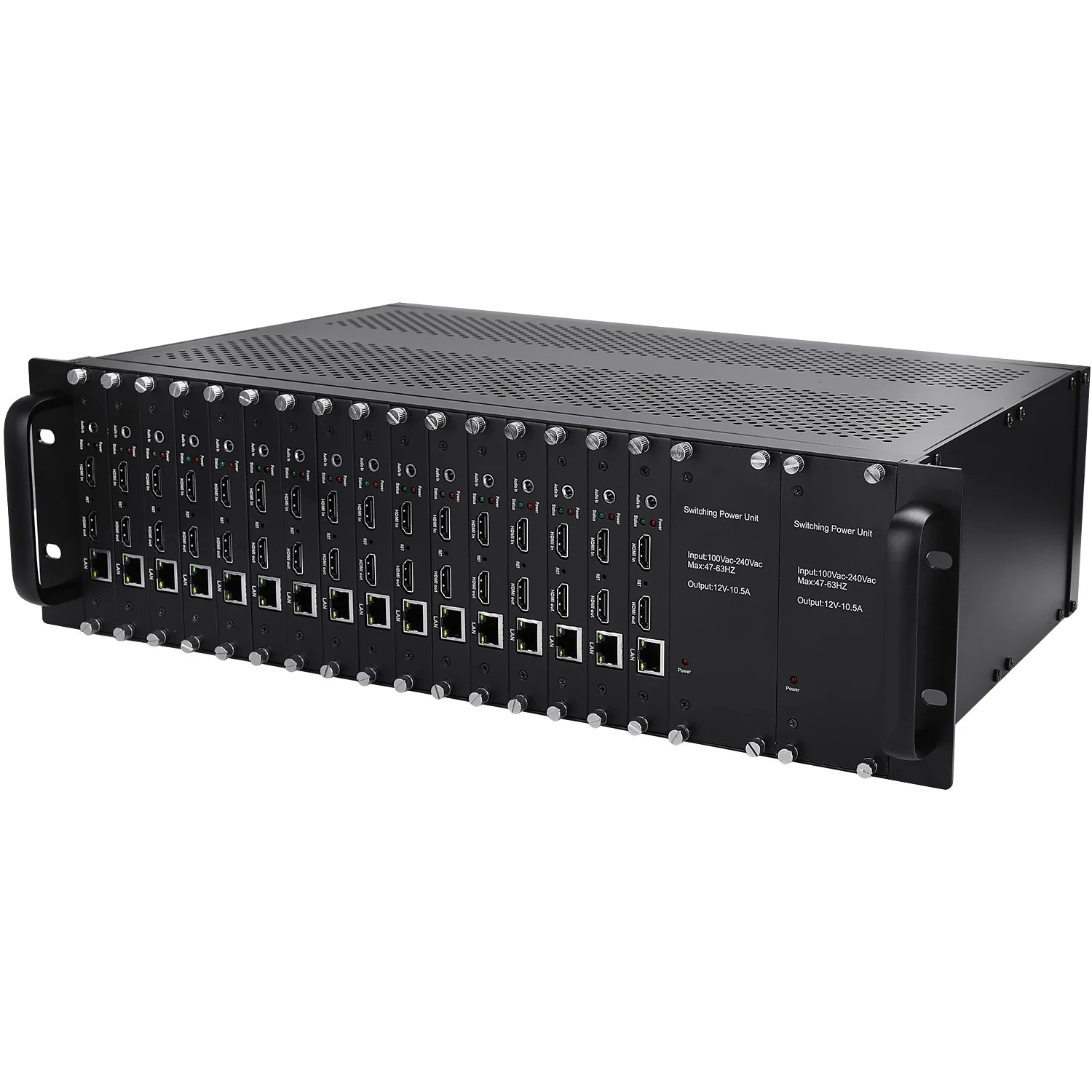

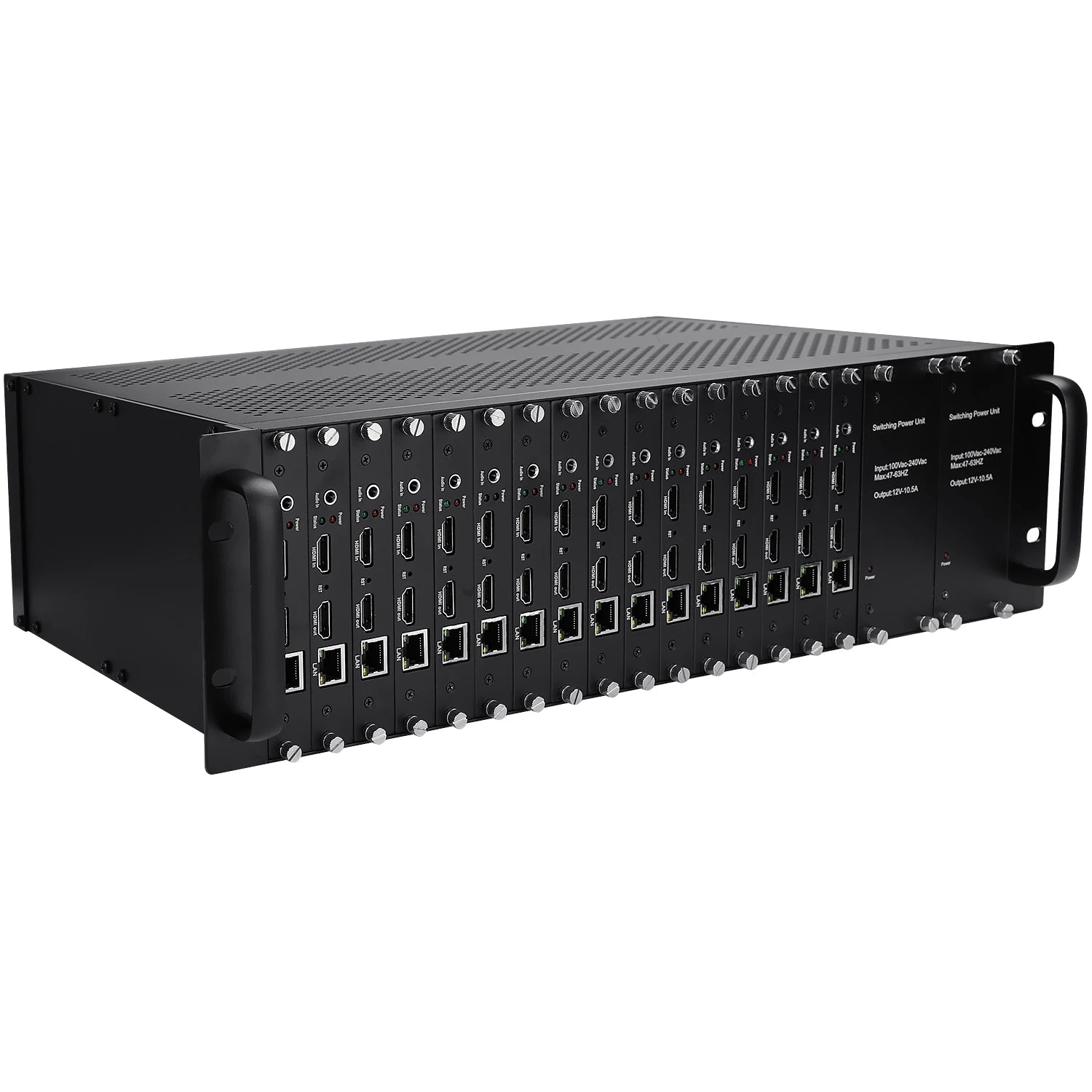

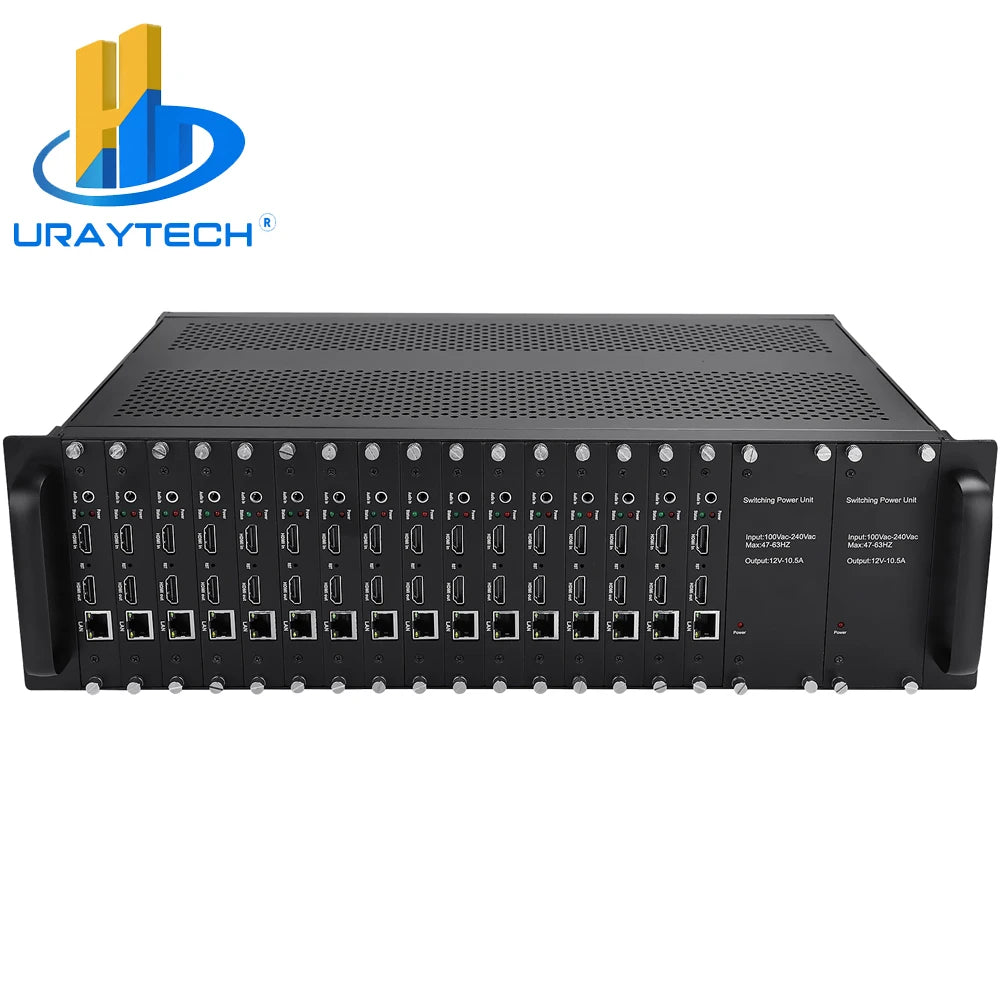

MPEG-4 AVC/H.264 16 channel HDMI Video Encoder HDMI Transmitter live Broadcast encoder H264 encoder

• Support H.264 /AVC, MJPEG video encoding

  Support AAC, AAC+, AAC++,MP3, MP2, AC3, Opus, G.711 audio encoding

• Support to live streaming on max 4 live broadcast platforms simultaneously for each channel

  4 streams output for each channel, support different protocol transmission for each stream

• Support output video frame rate setting, max 60fps input and output

  Support output video resolution setting, max 1920x1080P input and output

• Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

  Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

• Support multiple on screen display settings, such as logo /text /scroll text /time etc

  Support customize the no signal image when there is no input signal

• Support both HDMI audio and external audio input simultaneously

  Support to switch HDMI audio or external audio as output audio at will

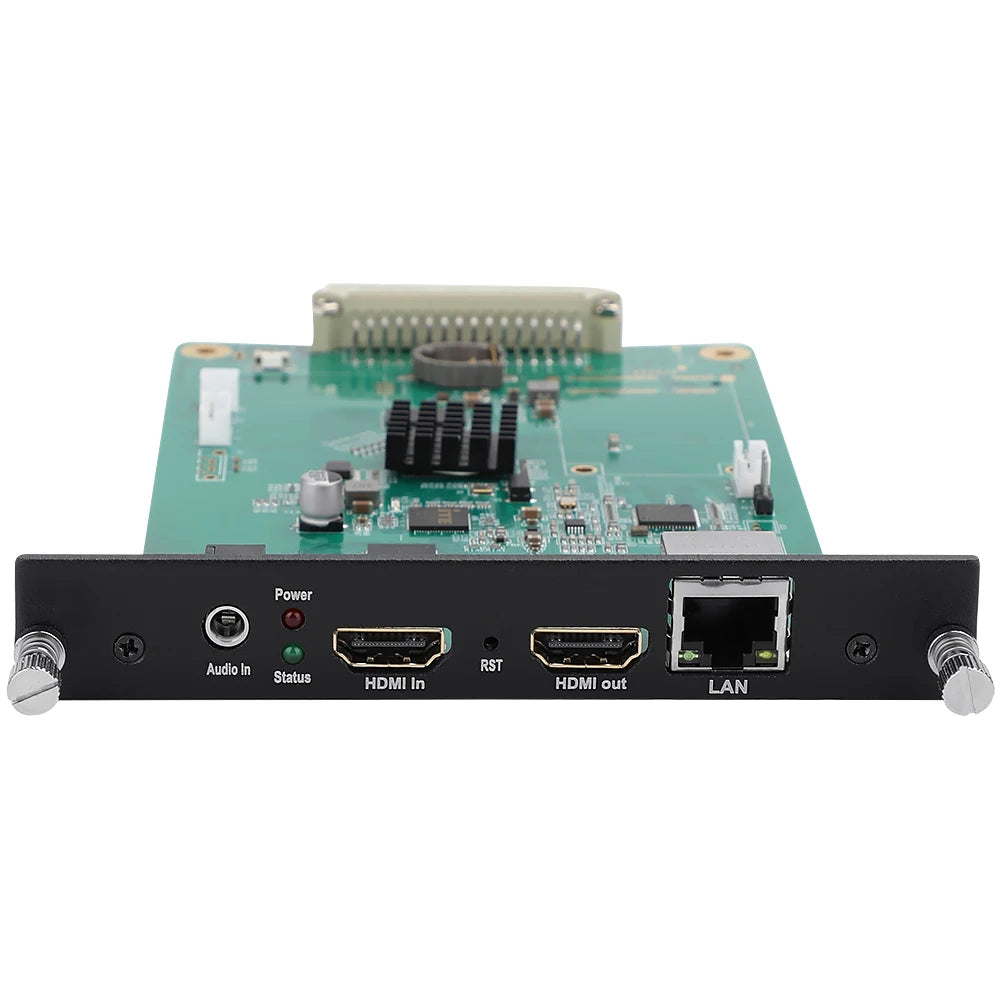

• Support single-channel HDMI signal local output for reuse

  The looped out hdmi signal is the same as the input hdmi signal without any loss

• Support web page or APP control dashboard

  Support wide area network remote management(via port forwarding)

• Provide SDK /API /CGI for secondary development

  Support logo printing /language /firmware /function etc customization

• Set up for the first time, plug and play when use it later

  Not only RTMP(S), but also streaming HLS to YouTube or other server(New feature)

• Status Display

• Stream Setting

• OSD Setting

• Upgrade



•  If you have problem of making payment, please contact us.

•  If you are worried about customhouse charge, please contact us.

•  If you need to print your logo on the device, please contact us.

•  If you require any files regarding to the product(user manual, new firmware etc), please contact us.

•  If you have questions before buying, please contact us.

•  If you meet the technical problems after buying, please contact us.

•  If you want to test this device before buying, please contact us.



Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.

For more information about our company and product, please visit our official website.
