Low latency 8 in 1 HD Encoder H.264 with 8 HD to IP output
Product Description

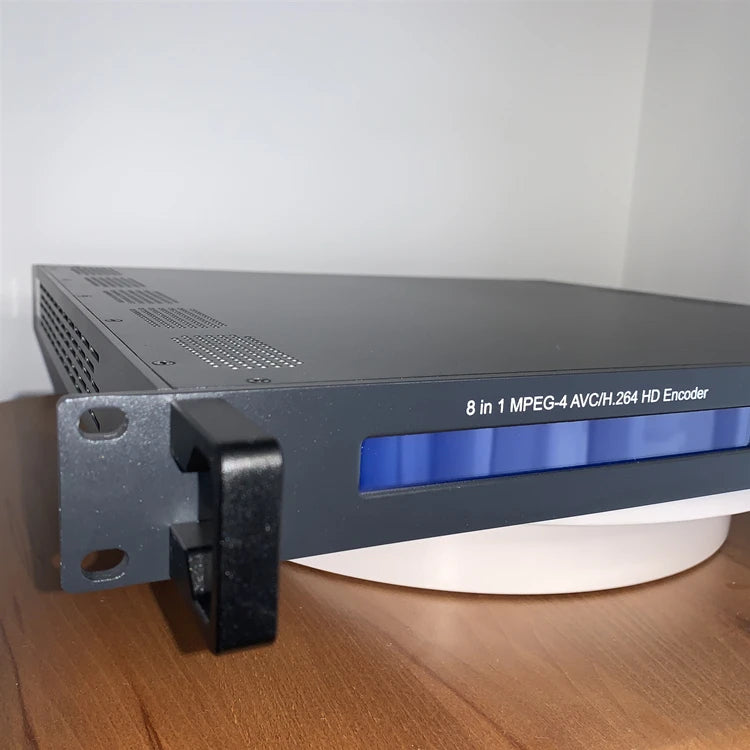

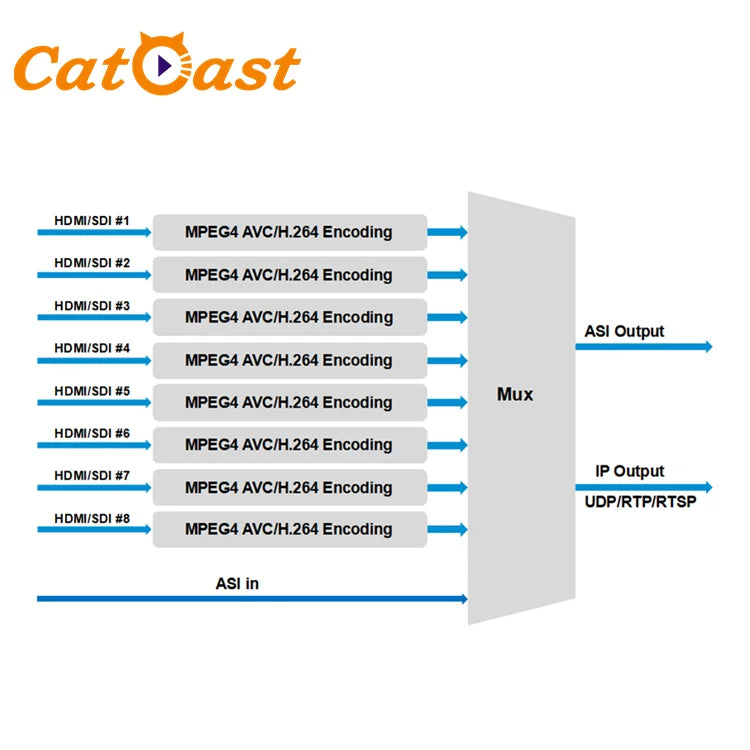

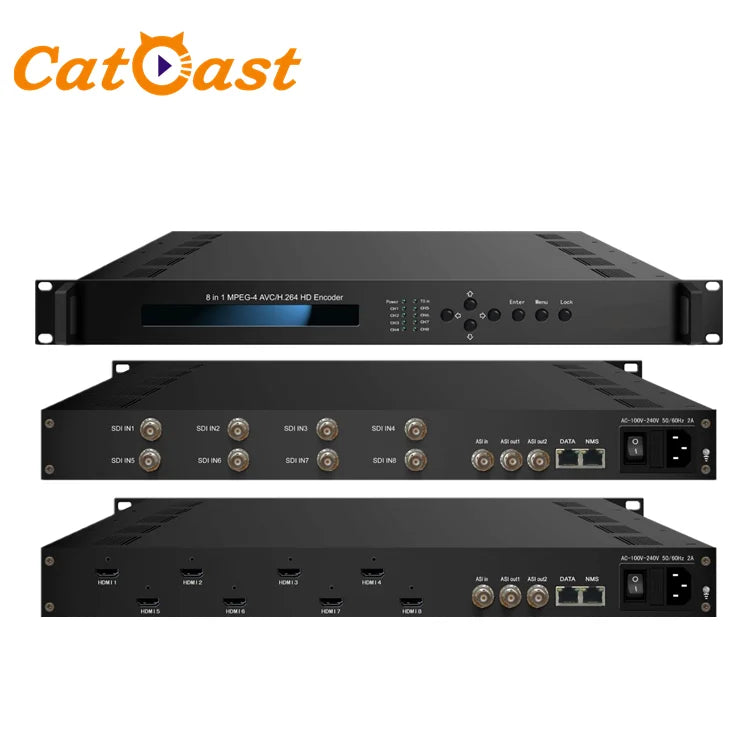

HPR808D 8-in-1 MPEG-4 AVC/H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HD MI/SDI channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format and 1 ASI input. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, IPTV head-end, satellite and terrestrial digital TV, etc.
Key Features
● Support 8 HD MI/SDI channels input & 1 ASI Input
● Support 720P, 1080I, 1080P HD video format, and HD (1080i/720p) to SD (576p/480p) downscale conversion
● Support MPEG-4 H.264/AVC video encoding
● Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding; AC3 Passthrough (For HDMI)
● Support audio gain control
● Low delay 50-500 ms available
● Support PSI/SI editing and inserting
● Support VBR/CBR video bitrate mode
● Support ASI output
● Support IP Output MPTS and 8 SPTS over UDP/RTP
● Support IP null packet filter
● Real-time output bit-rate monitoring
● Update device through NMS port

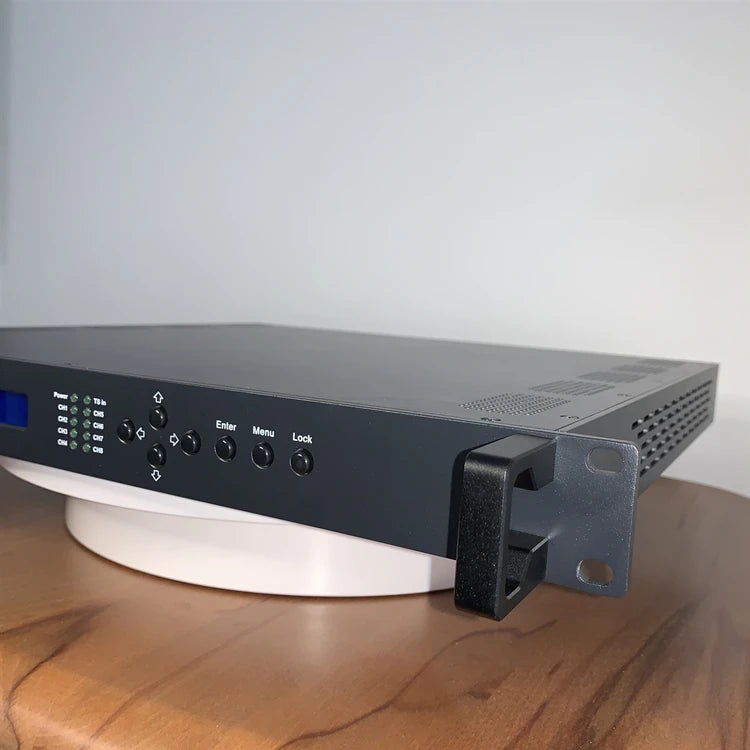

● Support LCD / keyboard operating, and network management (SNMP)
Specification
|
Input
|

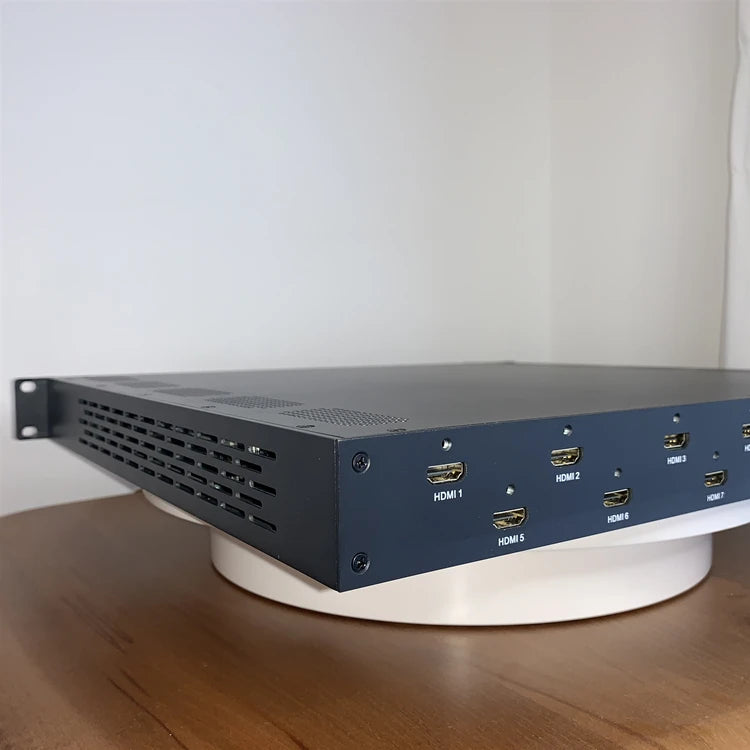

8×HD MI/SDI inputs
|
||
|
1 ASI input, BNC interface
|
|||
|
Video
|
Resolution
|
1920×1080_60P, 1920×1080_50P
|
|
|
1920×1080_60i, 1920×1080_50i
|
|||
|
1280×720_60P, 1280×720 _50P
|
|||
|
720×576_50i, 720×480_60i
|
|||
|
Encoding
|
MPEG-4 AVC/H.264
|
||
|
Bit-rate
|
0.8Mbps~19Mbps (each channel)
|
||
|
Rate Control
|
CBR/VBR
|
||
|
IBBP
|
GOP Structure
|
||
|
Advanced Pretreatment
|
De-interlacing, Noise Reduction, Sharpening
|
||
|
Audio
|
Encoding
|
MPEG-1 Layer 2, HE-AAC (V2), LC- AAC
|
|
|
Sampling rate
|
48KHz
|
||
|
24-bit
|
Resolution
|
||
|
Bit-rate
|
64Kbps~384Kbps each channel
|
||
|
Multiplexing
|
1 ASI input multiplexed with local 8 channels of TS
|
||
|
Stream output
|

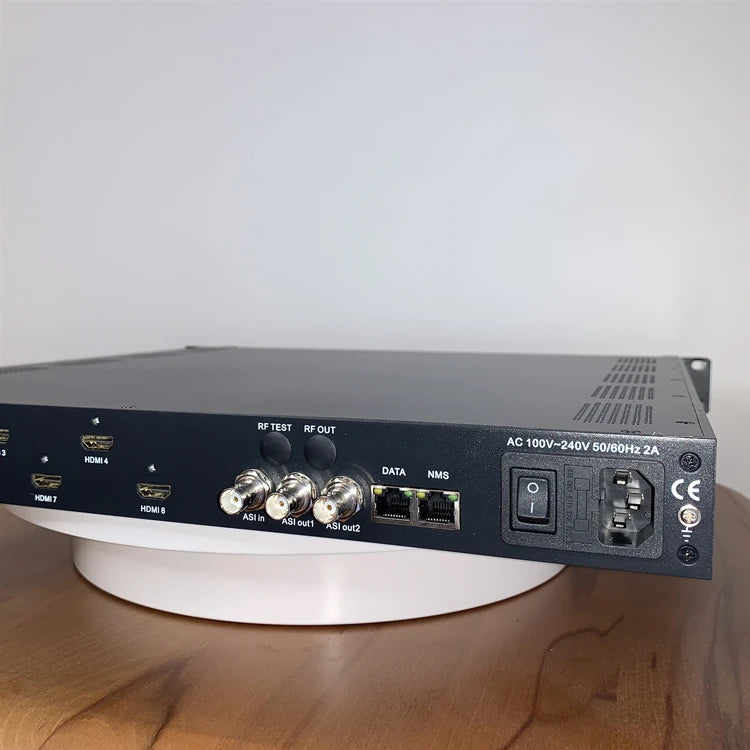

2*ASI output, BNC interface
|
||
|
MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet interface (UDP unicast / multicast);
|
|||
|
System function
|
LCD/keyboard operating, net manager (SNMP)
|
||
|
Chinese-English control interface
|
|||
|
Ethernet software & hardware upgrade
|
|||
|
Miscellaneous
|
Dimension (W× L× H)
|
440mm×410mm×44.5mm
|
|
|
Approx weight
|
4kg
|
||
|
Temperature
|
0~45℃(work), -20~80℃（Storage）
|
||
|
Power
|
AC 100V-220V±10%, 50/60Hz
|
||
|
Consumption
|
25W
|
||
INTERNAL TEST REPORT OF DELAY
(The values of average delay cover the progress from Encoding to Decoding)
