DIGICAST 1080P 60 FPS AC3 Audio 8 Channels HD MI IPTV Video Streaming Encoder RTMP RTSP HLS Live TV Solution

Name: DIGICAST 1080P 60 FPS AC3 Audio 8 Channels HD MI IPTV Video Streaming Encoder RTMP RTSP HLS Live TV Solution
Brand: Dimensional Video Networks
SKU: 191819495013900_474675064
Price: 1792.89 USD
Availability: InStock

$1,792.89 USD

~~$0.00 USD~~ $1,792.89 USD

Sale Sold out

default default

Product variants

Quantity

Product Description

MINI IPTV Encoder Highlights.

Ecomonic version by widely applications for Hotel, School, Sport bars, Hospital, Churches Event Streaming, Conference Live Streaming, Concert Event Streaming etc.

Output 1080P 60fps Resolution ,AC3 Audio

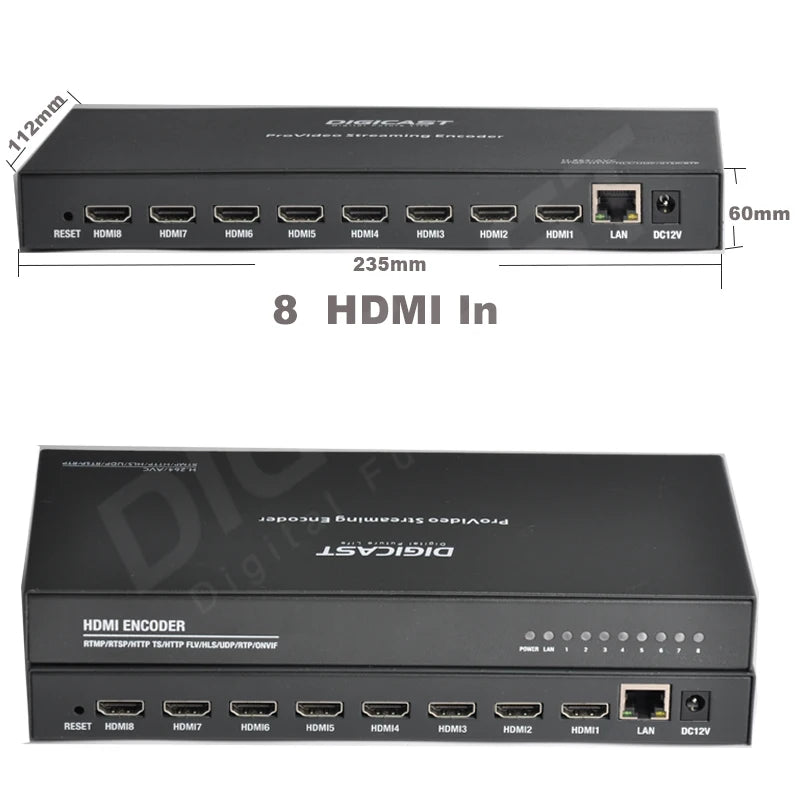

*Support 8 channel HD MI
*Support up to 4 TS over IP stream out per module
*Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
*Bitrate mode: CBR/VBR

*Providing username, password matching function which required from destination server.
*Support multiple equipments display at the same time on a computer

*Full-duplex mode 1000M.
*Web-based management

MINI IPTV Encoder Highlights.

*Capable of image parameter settings

*Switchable of audio output mode: Left, right and Stereo
*Configurable of Multi-rate, Multi-resolution, Multi-protocol
*Providing 4 TS streaming output each streaming can be set RTSP/HTTP/UDP/HLS/RTMP protocol

*Support ONVIF Network Video Protocol

*System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

Specification
VIDEO SPECIFICATIONS	Video compression: H.264/AVC High Profile Level 4.0 Video inputs: 8* HD MI Analog video input mode: PAL, NTSC
AUDIO SPECIFICATIONS	Audio compression: AAC, MP3 Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate:48000,64000,96000,128000,160000,192000,256000 Re-sample:32000,44100
OUTPUTS(IP output)	Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS/RTMP protocol For HD MI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP/HLS/ RTMP protocol) Connector: RJ45, 1000M
Resolution:	main/Sub/Third/Fourth stream all can be set the following resolution : 1920x1080,1680x1056,1280x720,1024x576,850x480, 720x576,720x540,720x480,720x404,704x576,640x480, 640x360,auto Bit-rate: 16kbps ~ 12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering
GENERAL OPTIONS	SYSTEM Configuration Interface: Web-based management. Upgraded: via network Connector: RJ45, 1000M Ethernet interface. PHYSICAL AND POWER Voltage: AC220V±10%, 50/60 Hz Consumption: 80W Operating temperature: -20~80°C Dimensions: 490mm(W)370mm(D)150mm(H) Weight: 1kg/pc
