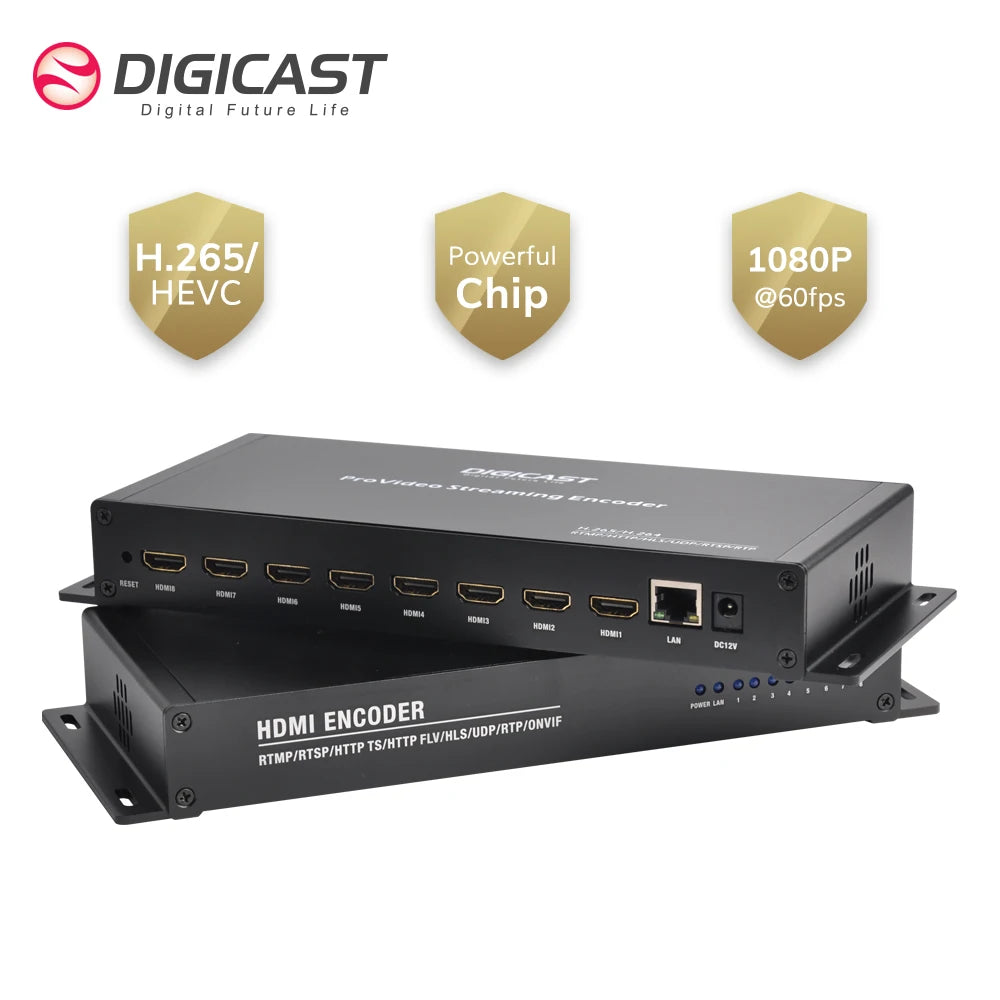

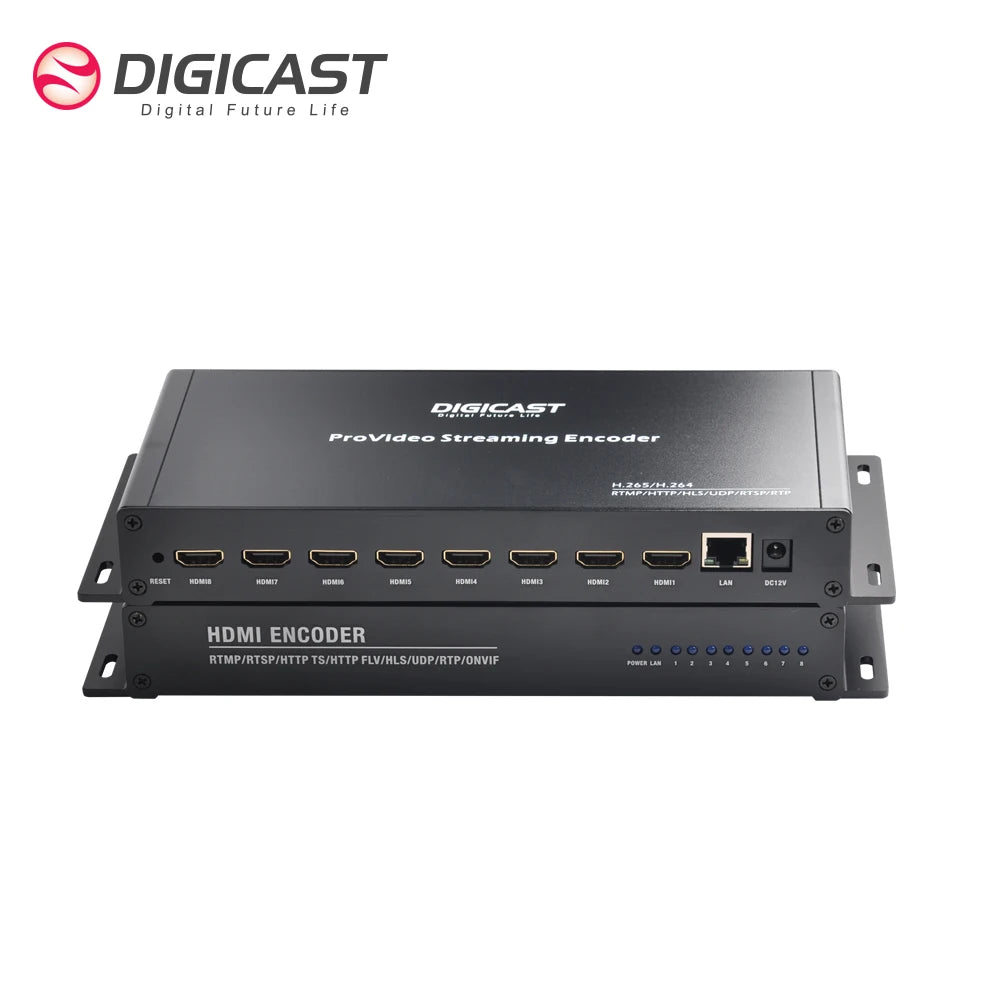

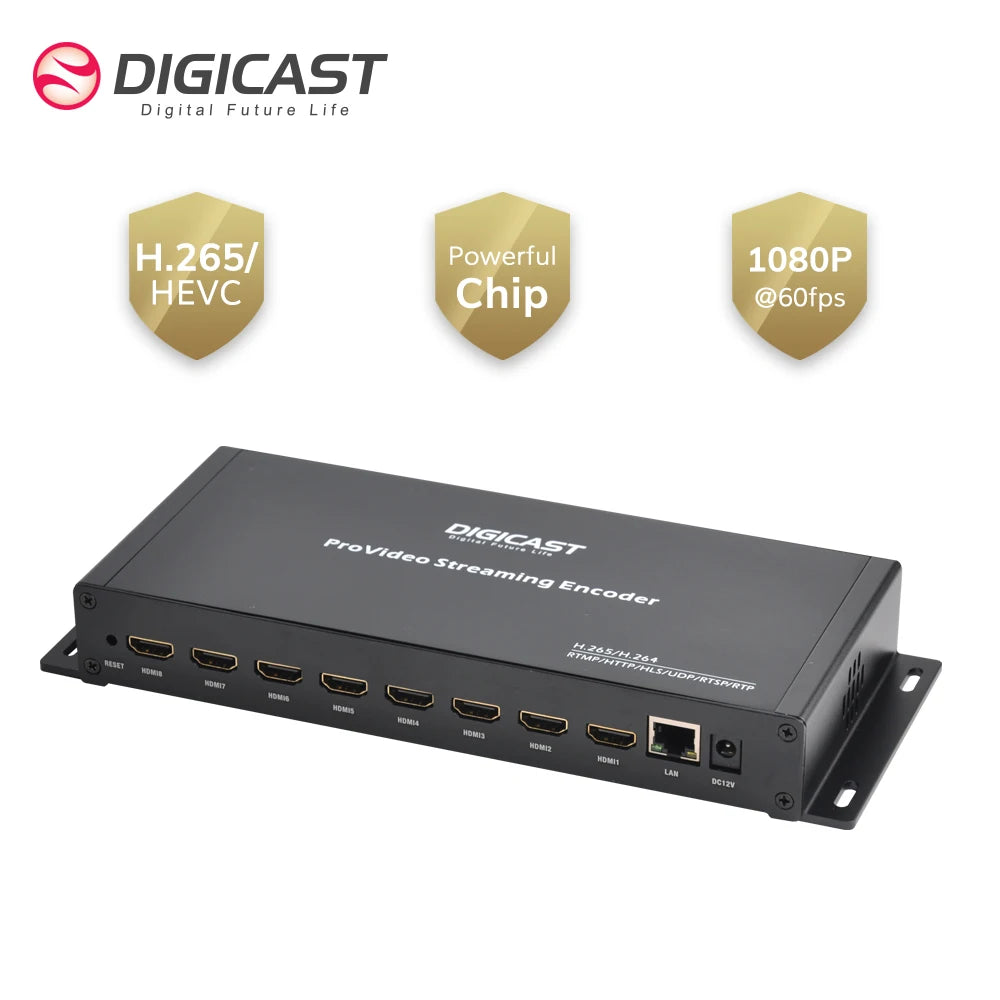

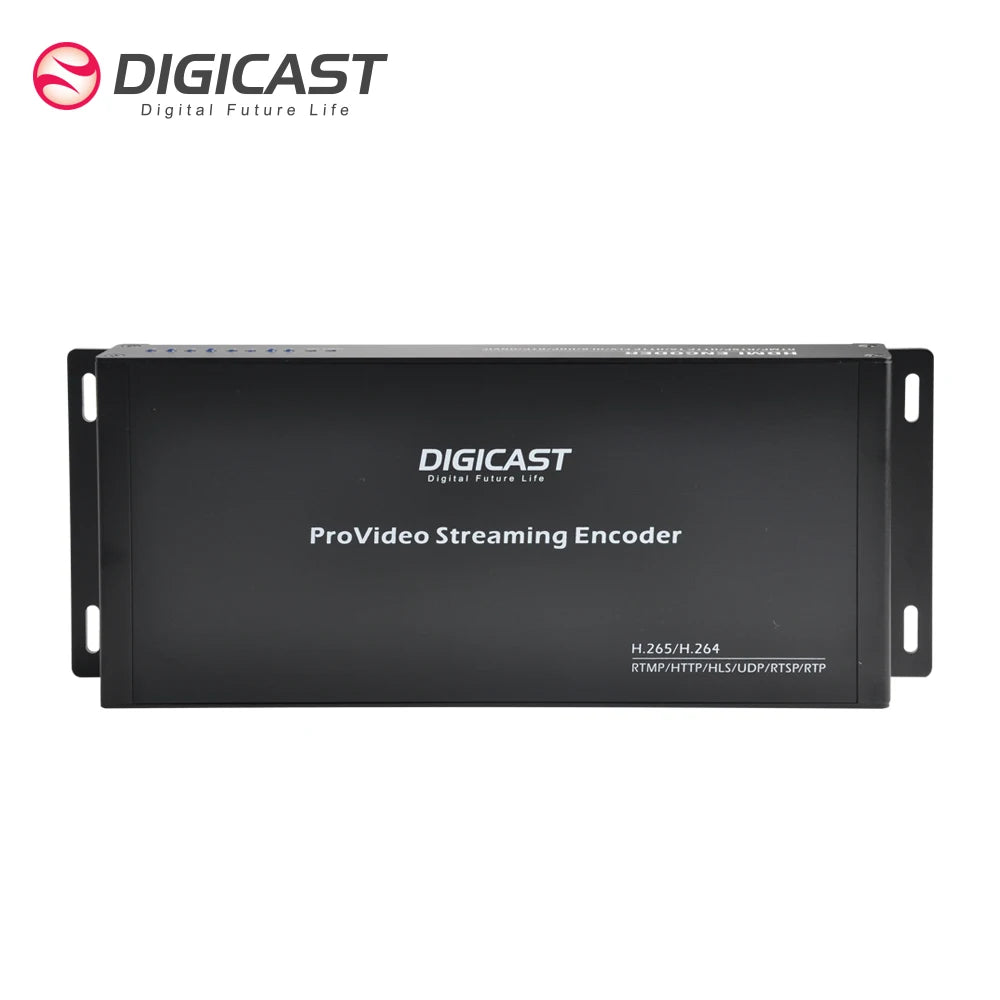

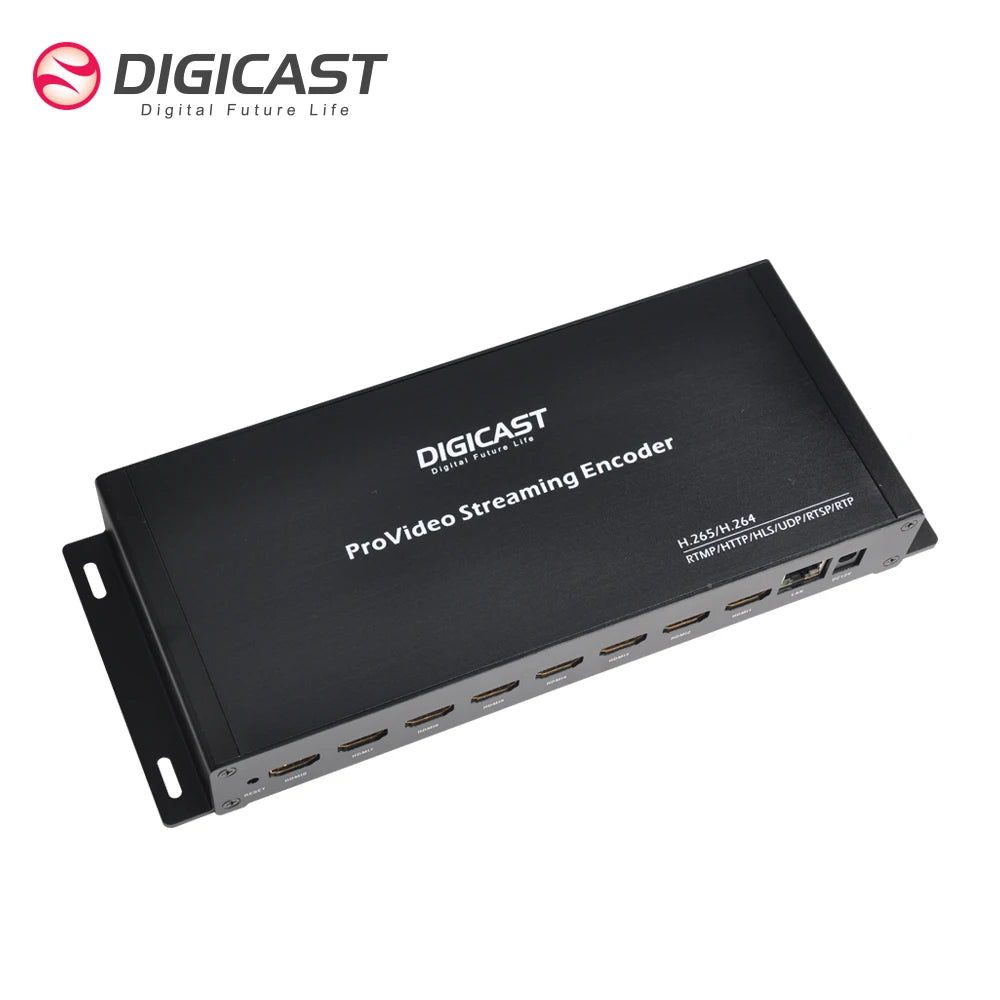

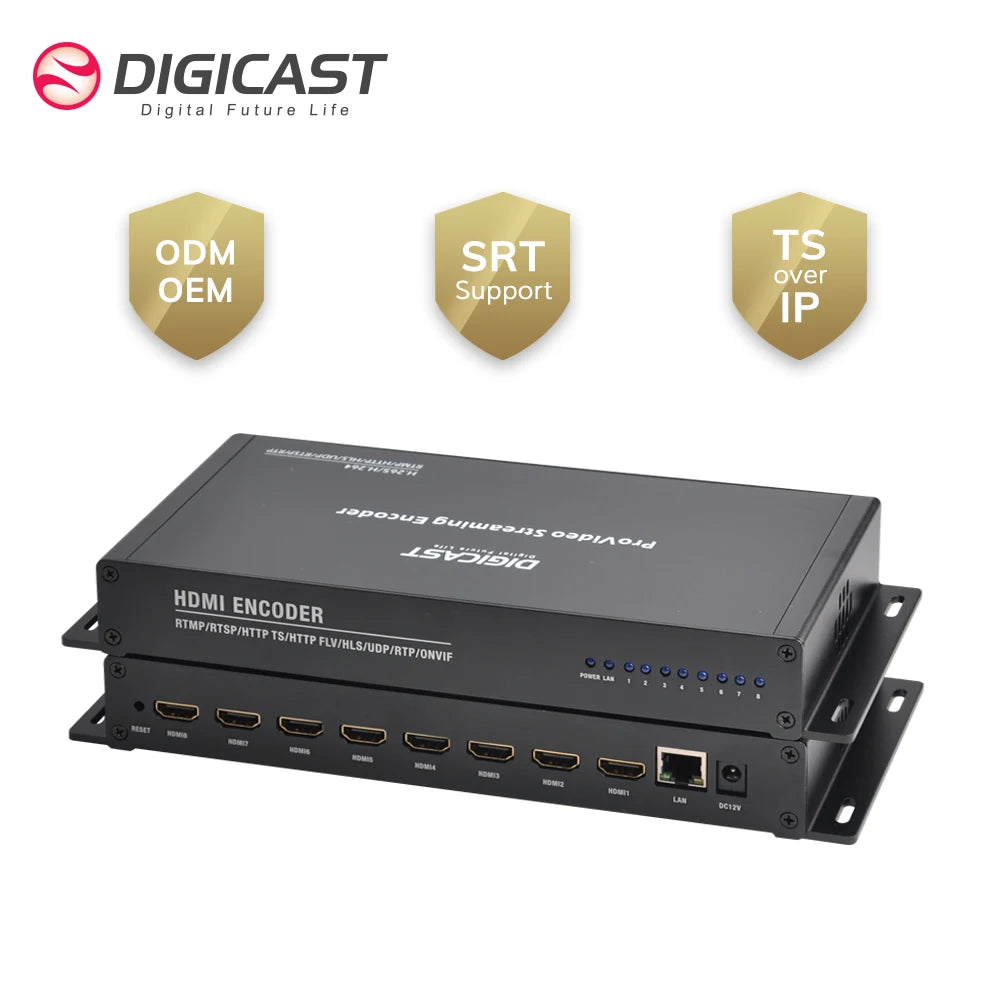

8 HD MI Encoder H265 H264 Support HLS RTMP HTTP RTSP UDP Video Encoder for IPTV Live Streaming
8 HD MI Encoder H265 H264 Support HLS RTMP HTTP RTSP UDP Video Encoder for IPTV Live Streaming
Regular price
$1,571.21 USD
Regular price
$0.00 USD
Sale price
$1,571.21 USD
Unit price
per
Couldn't load pickup availability
Product Description
Specification
Overview
DMB-8908A-EC H.265/H.264 HD 8 Channel IPTV Encoder supports HD/SD audio and video collection by 8-Ch HD HDMI input. For HDM input, each channel of HDMI input supports output 2 groups IP streams with two different resolution and two different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMP, HTTP, RTSP, UDP), this enable Encoder to deliver H.265/H.264 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on HLS/ UDP/ RTSP/ RTMP/ HTTP/ ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which does not authorized.
Features
●Video Input: 8-Channel HDMl work simultaneously
●Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
●Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
●All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
●Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
●Having 8*HDMl embedded audio input
●Support RTMP User name and Pass word for authentication of IPTV Server
●Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain
●Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
●Bitrate mode: CBR/VBR
●Capable of image parameter settings
●Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
●Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
●Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
●Support HDCP protocol
●Support ONVIF Network Video Protocol
●Support multiple equipment display at the same time on a computer
●System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
●Web-based management
●Full-duplex mode 1000M
●Video Compression: HD H.264/MPEG-4 AVC, up to 1080P@60fps
●Audio compression: AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
●All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
●Support output 2 groups TS over IP streams with 2 different resolutions and 2 different bitrates by each HDMl channel input
●Having 8*HDMl embedded audio input
●Support RTMP User name and Pass word for authentication of IPTV Server
●Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain
●Support H.264 Baseline Profile/Main Profile/High Profile and MP3 & AAC audio compression
●Bitrate mode: CBR/VBR
●Capable of image parameter settings
●Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.
●Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
●Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
●Support HDCP protocol
●Support ONVIF Network Video Protocol
●Support multiple equipment display at the same time on a computer
●System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
●Web-based management
●Full-duplex mode 1000M
|
Video compression
|
H.264/AVC High/Main/Baseline Profile Level 4.0
|
|
Frame rate
|
up to 60fps
(Recommended to be setup under the max. capability of 8CH@30fps OR 4CH@60fps+4CH@30fps)
|
|
Video input
|
8*HDMl
(HDCP compatible)
|
|
Main stream
|
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576,640x480,640x360, auto
|
|
Bit-rate
|
16kbps~12Mbps, CBR/VBR
|
|
Video pre-processing
|
Noise reduction, Sharpen, Filtering
|
|
Audio compression
|
AAC,AAC+,AAC++,MP3,MP2, Dolby Digital AC-3
|
|
Audio input
|
8*HDMl embedded
|
|
Sampling accuracy
|
24-bit
|
|
Bit Rate
|
48kbps~320kbps
|
|
Transport protocol
|
TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
|
|
Connector
|
RJ45, 1000M
|
Application
LIVE APPLICATION
ideal for broadcast of audio/video or live streaming to Live Platform : YouTube Live, Facebook Live......or icould server
* IPTV & OTT system
* Internet TV
* Digital Signage Project
* Remote Video Conference
* Video Monitoring
* Live Streaming
* Digital TV Broadcasting System
* Digital TV Programs Transmission
* Hotel TV System
* Head-end system of Digital TV branch network
* CATV Broadcasting system
*Edge side of Digital TV backbone network
APPLICATION IN CCTV, Live Conference
Our video encoders can help you migrate a traditional analog/digital camera into a modern IP system and use digital recorder, such as NVRs(network video recorder) and VMSs(video management system)
Our encoder support SRT,ONVIF for Surveillance, transmission between cameras
Our encoder support SRT,ONVIF for Surveillance, transmission between cameras
DIGICAST Encoder +Decoder set use for point to Point video conference application
DMB-8900A-EC VIdeo to IP Encoder
DMB-8900BE IP to Video Decoder
Ultra Low latency solution
DMB-8900A-EC VIdeo to IP Encoder
DMB-8900BE IP to Video Decoder
Ultra Low latency solution
