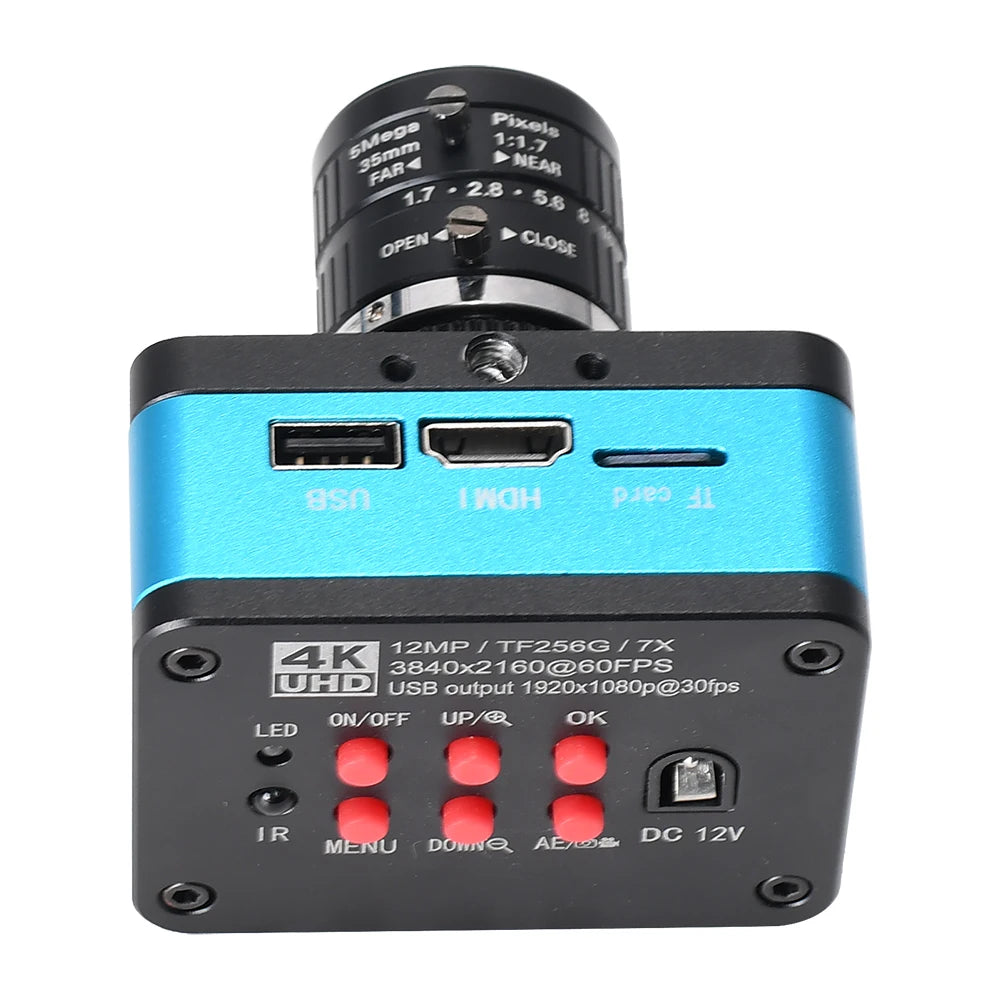

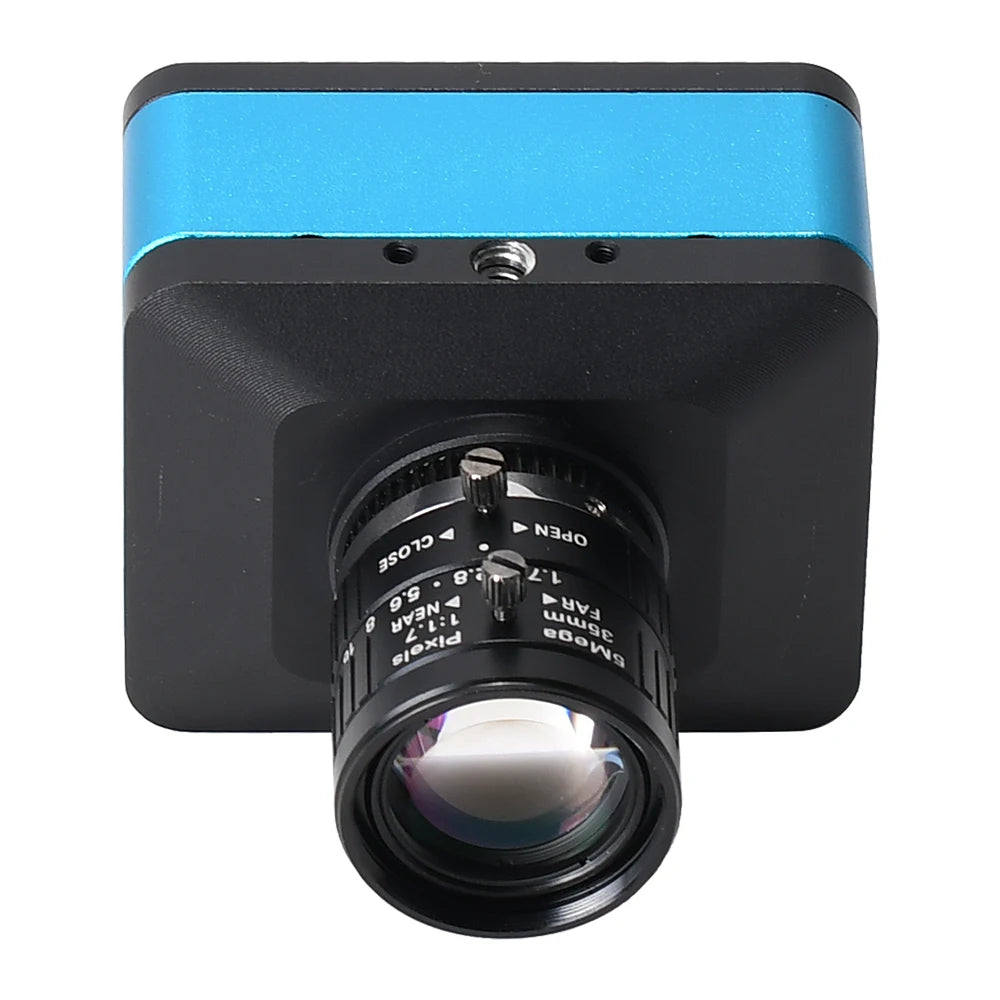

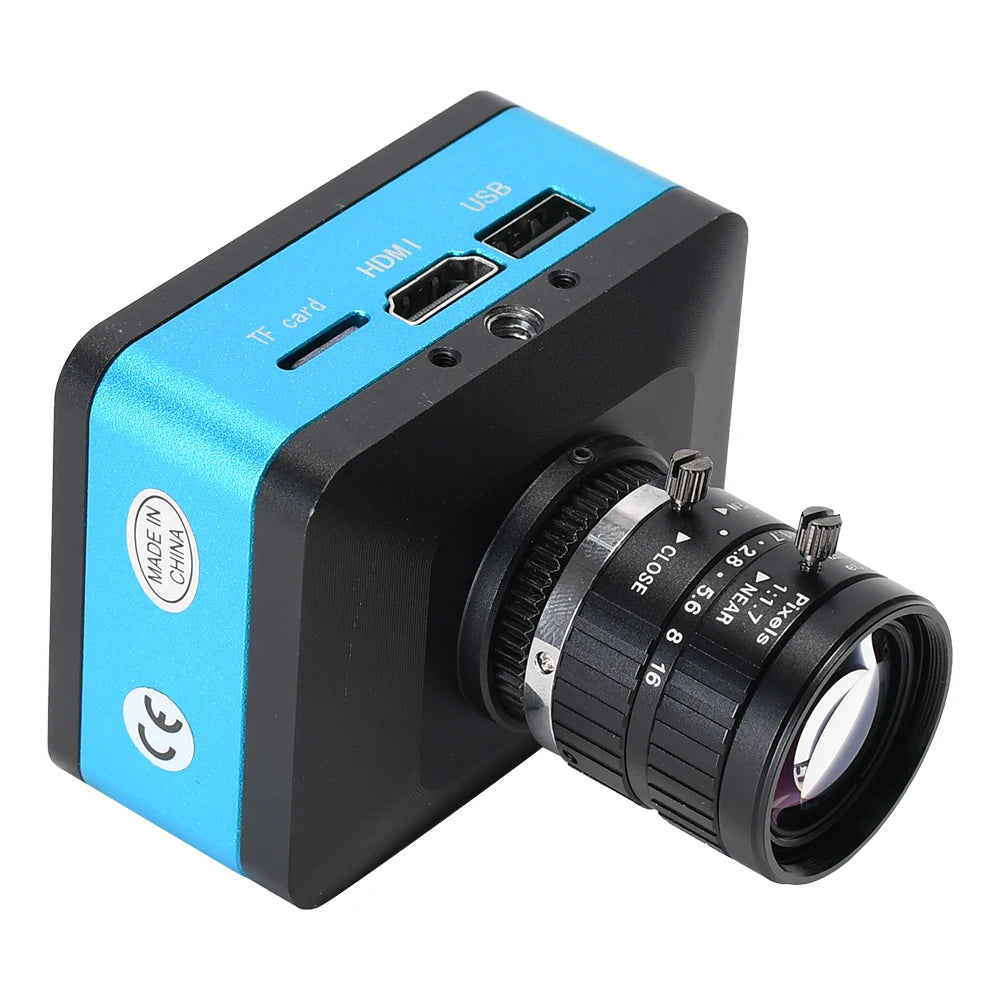

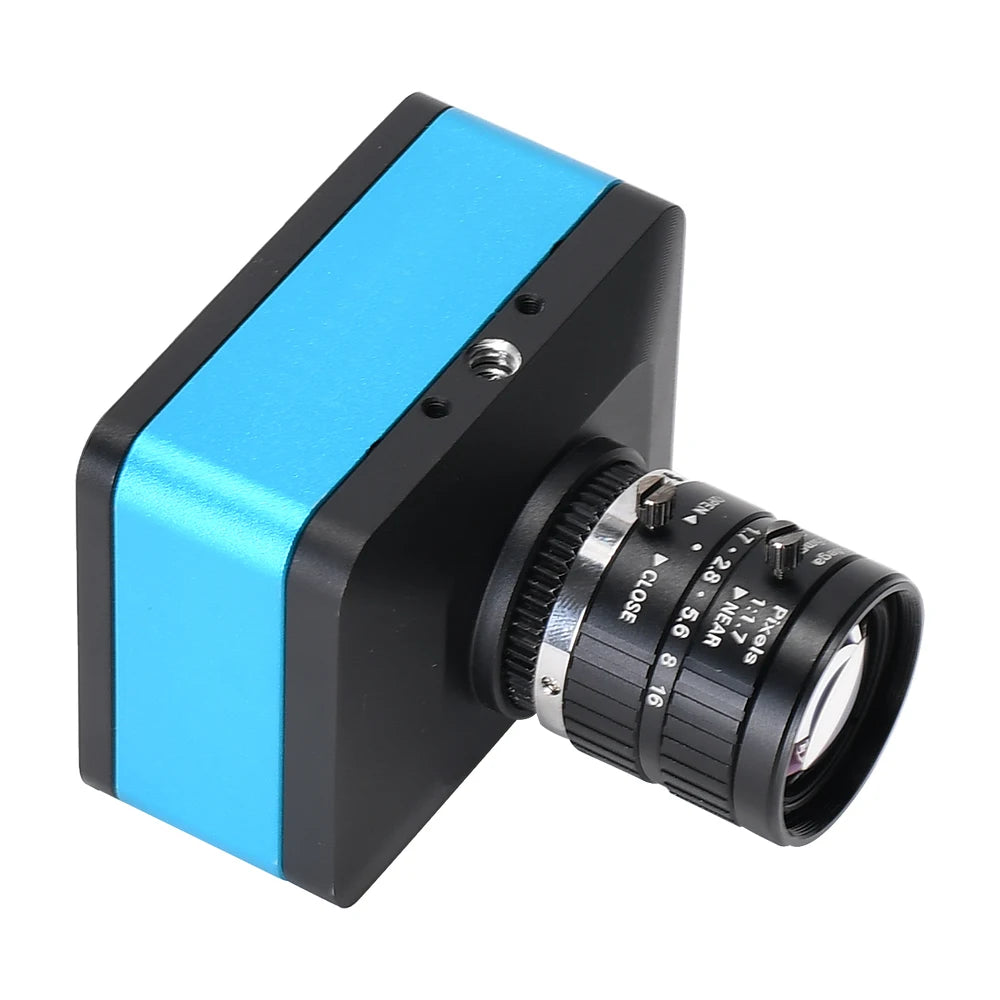

4k HD Live Stream Camera - HDMI Video Output - 35mm C-Mount Fixed Focus CCTV Varifocal Lens

This is UltraHD 4K industrial camera,The resolution is 3840 x 2160 pixels,Can choose 720P 1080P 4K mode,Adopt standard HDMI interface,It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection,Use HDMI splitter to project to a large FHD TV for the best display.





Specification:

Effective Pixels	12MP CMOS 1/2.33 IMX 4K SENSOR
Resolution	4K/2K/1080P 1080P(USB)
Sensor Size	1/2.33inch
Pixel Size	1.55 × 1.55μm
Image Resolution	4032 × 3024  (12MP) (16:9)
Frame rate	60@FPS (4K)
Image Format	JPEG
WaveLength[nm]	400nm~700nm
Frame Fatie	3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS
Lens Fype	C / CS
Timing Photo/Record	Support Timing Photo/Record
Storage	TF Card, Max 256G
PC Support	Windows XP/7/8/10 , PC Software withMeasuring Function
Image Measurement	Support HAYEAR Measurement
Language	EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP

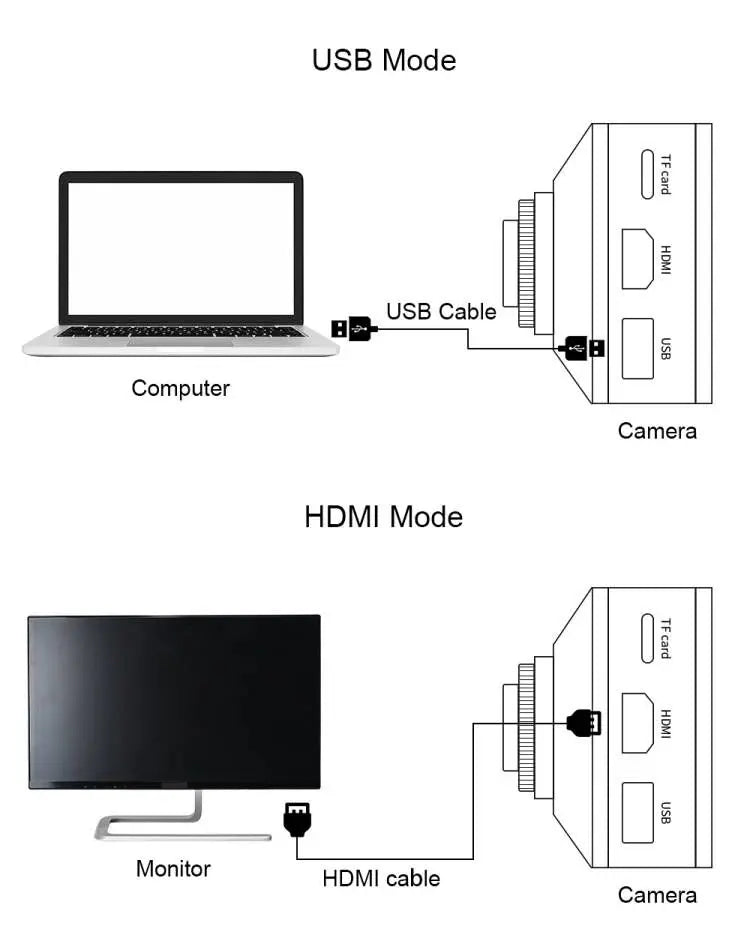

Output Interface	HDMI/USB Standard usb2.0 interface (Type B)
Image Scaling	7-Fold zoom
Transverse and vertical line	Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line , 5 vertical line,any positions
Encode	H.264 /H.265 (High Profile)
Video format	MP4
Input Voltage	DC 12V 1A
Exposure	Auto/Manual, value adjustable
Size	75×60×39mm(LxWxH)

35mm F1.7 Lens Specification:



Focal-Length: 35mm

Relative Aperture D/f': F1.7

Mount: C

Image Format: 1/1.8in

Field of View: W14.8°xT10.8°

Dimension: Approx. 35 x 22mm

Resolution: 5MP

Flange BFL: 17.53

High resolution : 5 megapixel covering 5MP & 1080P

Large format: 1/1.8" size covering 1/1.8", 1/2" camera

Big aperture : F1.7 big aperture makes imaging far better

Low distortion :<0.1% low distortion use machine vision FA automatic

Application :Biochemical, surveillance, FA, face recognition etc.





Lens Features:



1.35mm F1.7 Len

2. Varifocal length cctv lens, optical lens, CCTV camera lens, CS Mount Lens

3. focal length Function Manual Iris Lens, security lens

4. Low distortion Lens for box camera, Security Camera Lens, Surveillance Lens

5. This high resolution CCTV lens can capture the all resolution of mega pixel camera, IP camera & High resolution camera.

6. Suitable for live stream cameras, surveillance camera, etc.





Packing list:



1 X 4K HDMI Camera

1 X 35mm F1.7 Lens

1 X Remote control

1 X DC12V power supply

1 x HDMI cable

1 x USB cable
