16 Channels HD MI H.264 OTT IPTV Encoder support IPTV Wowza Server FMS Server
16 Channels HD MI H.264 OTT IPTV Encoder support IPTV Wowza Server FMS Server
Couldn't load pickup availability

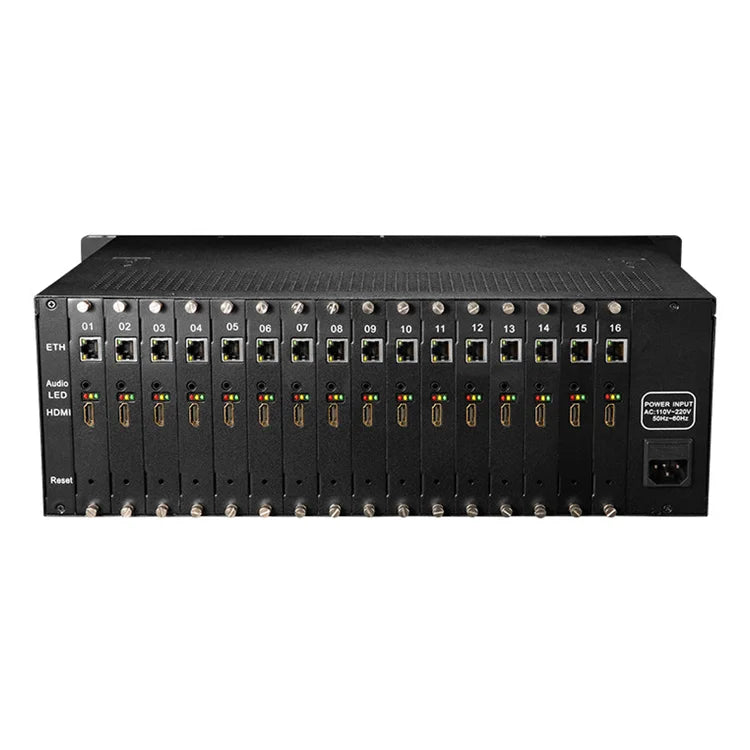

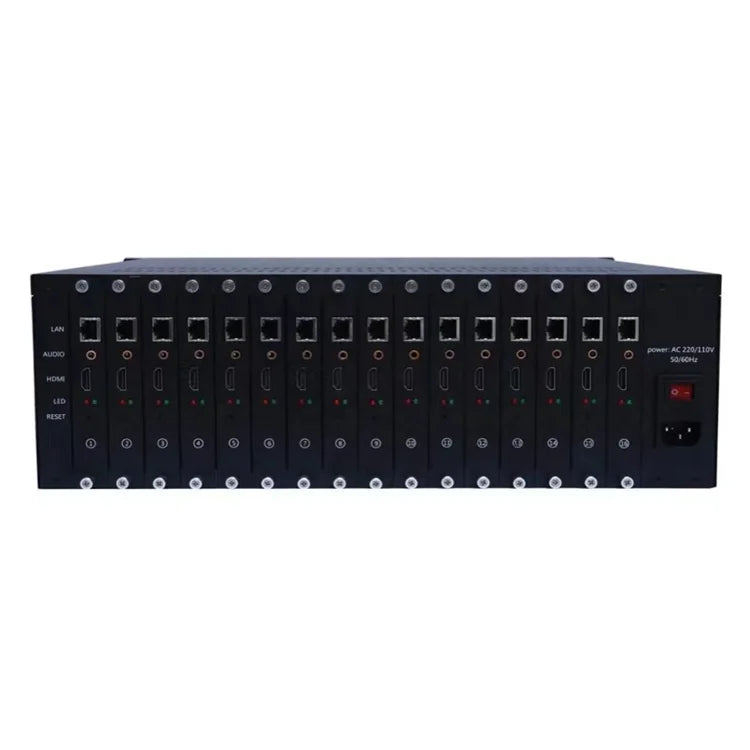

HPK816D 16 Channel MPEG-4/AVC H.264 HD Encoder is a professional audio&video encoding device, which realize Video & Audio real-time transmission via internet, it support 16 channels HD *MI input and 16 channels IP stream data output, adopt the advanced MPEG-4 AVC/H.264 video encoding technology, and it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover,with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare than traditional broadcast Encoder. It can be widely applied to education, health care, IPTV, live broadcast,Hotel TV system, conference, remote education, news interview,court, public security, banking, transportation and other industry application.
It provides the complete second development kits to system developers,through the SDK, system developers can take system design by VB,VC programming software.
|
Video
|
Input
|
16x HD MI , support HDCP
|
||||
|
Resolution
|
1920x1080 / 1280x720 / 1280x1024 / 1280x960 / 704x576 /
720x576/ 720x480 /640x480 /352x288 /320x480 |
|||||
|
Encoding
|
H.264/AVC High&Main Profile Level 4.0
|
|||||
|
Data Rate
|
0.8Mbps~12Mbps
|
|||||
|
Rate Control
|
CBR/VBR
|
|||||
|
GOP Structure
|
IBBP
|
|||||
|
Advanced Pretreatment
|
De-interlacing, Noise Reduction, Sharpening
|
|||||
|
Audio
|
Encoding
|
MPEG-1 Layer 3 (MP3), MPEG-4 AAC
|
||||
|
Sampling rate
|
Auto
|
|||||
|
Bit-rate
|
32K/48K/64K/96K/128K/160K/192K
|
|||||
|
Sampling precision
|
24 bit
|
|||||
|
Data Rate
|
64Kb/s~384Kb/s
|
|||||
|
System
|
RJ45 port
|
100/1000M Base-T Ethernet interface
|
||||
|
Protocol
|
HLS/HTTP/ UDP/ RTMP/ RTSP/ RTP/ONVIF
|
|||||
|
Control interface
|
WEB-GUI interface
|
|||||
|
Upgrade
|
Software can be upgraded via network
|
|||||
|
General
|
Dimension (W× L× H)
|
430mm x 330mm x145mm (3U rack)
482mm x 410mm x 45mm (1U rack)
|
||||
|
Weight
|
8 kg
|
|||||
|
Temperature
|
0~45°C(operation),-20~80°C(storage)
|
|||||
|
Double Power
|
110-220V AC
|
|||||
|
Consumption
|
90W
|
|||||
